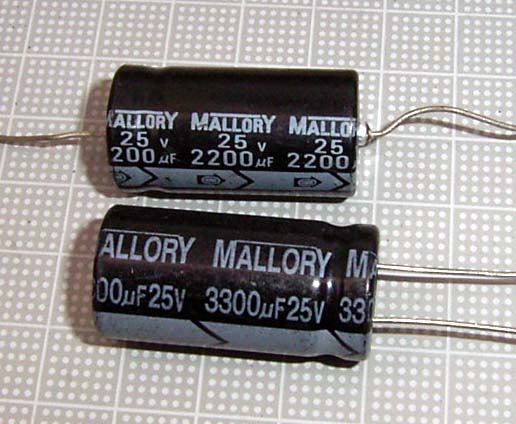

ＣＤＥ（CORNELL DUBILIER）グループのＭＡＬＬＯＲＹ（マロリー）社製電解コンデンサです。
2200 uF/3300 uF :25 Volts 105℃
約16Φ×32mm
Type SEK 105 ºC Radial Leaded Aluminum Electrolytic Capacitors
Long Life, Aluminum Electrolytic Type SEK is a radial leaded aluminum electrolytic capacitor
with a +105 º C, long life rating. The volumetic
efficient high CV product of the SEK makes it ideal for high density packaging in general purpose, coupling,decoupling, bypass and filtering circuit applications.
パワーサプライ用整流コンデンサーとして
Highlights +105 ºC Long life High CV product General purpose applications
Available in T&R and ammo pack
Specifications Dissipation Factor @ 120 Hz, +25 ºC:
Ripple Multipliers for Voltage and Temperature:
0.47 to 15,000 μF 6.3 to 450 Vdc±20%
Apply WVDC for 2000 hours at +105 ºC
Capacitance change within 20% of initial limit
DF not to exceed 200% of initial requirement
Leakage current not to exceed 200% of initial
1000 hrs with no voltage applied
Cap change within ±20% of initial values
DF not to exceed 200% of initial requirement
DC leakage current meets initial requirement
