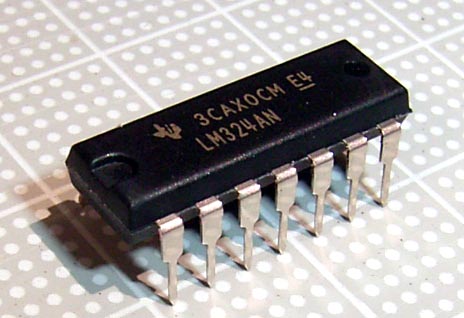

Texas Instruments (TI)社製LM324AN！
Manufacturer: Texas Instruments
Product Category: Operational Amplifiers - Op Amps
Gain Bandwidth Product: 1.2 MHz
Number of Channels: 4 Channel
Common Mode Rejection Ratio - Min: 65 dB
Input Offset Voltage: 3 mV
Input Bias Current - Max: 100 nA
Operating Supply Voltage: 3 V to 32 V, +/- 1.5 V to +/- 16 V
Mounting Style: Through Hole
Package / Case: PDIP-14
Slew Rate: 0.5 V/us
Shutdown: No Shutdown
Output Current: 30 mA
Maximum Operating Temperature: + 70 C
Amplifier Type: High Gain Amplifier
Brand: Texas Instruments
Maximum Dual Supply Voltage: +/- 16 V
Minimum Dual Supply Voltage: +/- 1.5 V
Minimum Operating Temperature: 0 C
Product Category: Amplifiers - Operational
Series: LM324A
Supply Current: 3 mA
Technology: Bipolar
Unit Weight: 1g
