【シリコントランジスタ】

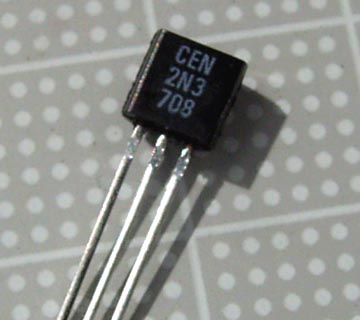

Central Semiconductor社製。
2Ｎ3708。
エフェクターで良く使用されているNPNトランジスタ。
TO-92
BEST FOR WAH WAH!
Manufacturer: Central Semiconductor
Product Category: Transistors Bipolar - BJT
Brand: Central Semiconductor
Configuration: Single
Transistor Polarity: NPN
Collector- Base Voltage VCBO: 30 V
Collector- Emitter Voltage VCEO Max: 30 V
Emitter- Base Voltage VEBO: 6 V
Collector-Emitter Saturation Voltage: 1 V
Maximum DC Collector Current: 0.2 A
Maximum Operating Temperature: + 150 C
Mounting Style: Through Hole
Package / Case: TO-92
Continuous Collector Current: 200 mA
DC Collector/Base Gain hfe Min: 45
DC Current Gain hFE Max: 660
Maximum Power Dissipation: 625 mW
Minimum Operating Temperature: - 65 C
Series: 2N3708
数字面から見て E C B
